Features
- Ergonomic micrometer
- Radial Die Movement
- High crimping force
- Electronic control including counters & semi-automatic opening
- Built in Safety to prevent incorrect die choice
- Cylinder protection
- Easy front access for elbow fittings
- Energy savings
- Automatic Maintenance Alertse
- Easy set up
Technical Specifications
- Capacity: 2" 4SP
- Crimp range: 4 - 76 mm
- Crimp force: 240t
- Opening with dies: +38 mm
- Complete opening: 118 mm
- Master-die length: 100 mm
- Motor: 4kW
- Dimensions: 600 x 390 x 630 mm (180Kg)
- Packing details: 1170x770x1100 mm (234Kg)
- Voltages available: 400V 3PH - 230V 3PH/1PH
Standard equipment
- Ergonomic micrometer
- Smart control panel
- Intermediate-dies 130/80 mm
Optional Equipment
- EG
- DSP
- DST
- Electrical footswitch
- Mechanical backstop
- Die sets for brake & air conditioning hoses
- Marking dies

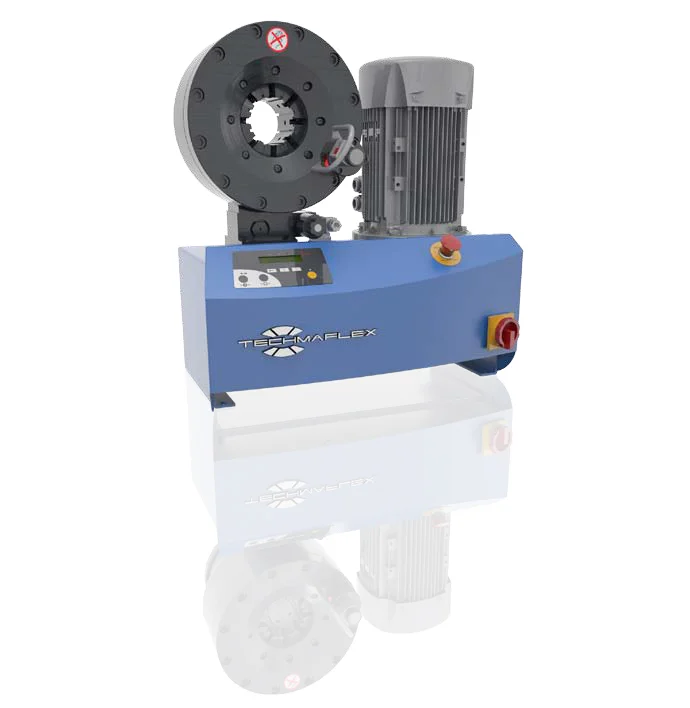

s crimp 240 crimping machine
| N° | Crimp range | Die length |
|---|---|---|
| 4 | 04-06 | 56 mm |
| 6 | 06-08 | 56 mm |
| 8 | 08-10 | 56 mm |
| 10 | 10-12 | 56 mm |
| 12 | 12-15 | 56 mm |
| 15* | 15-18 | 56 mm |
| 18* | 18-21 | 56 mm |
| 21* | 21-24 | 56 mm |
| 24* | 24-27 | 70 mm |
| 27* | 27-30 | 90 mm |
| 30 | 30-33 | 90 mm |
| 33* | 33-36 | 90 mm |
| 36 | 36-39 | 90 mm |
| 39* | 39-42 | 90 mm |
| 42 | 42-45 | 90 mm |
| 45* | 45-48 | 100 mm |
| 48 | 48-51 | 100 mm |
| 51* | 51-54 | 100 mm |
| 54 | 54-57 | 100 mm |
| 57* | 57-60 | 100 mm |
| 60 | 60-66 | 100 mm |
| 66* | 66-70 | 100 mm |
| 70 | 70-76 | 100 mm |
* Die sets included in the standard package.
