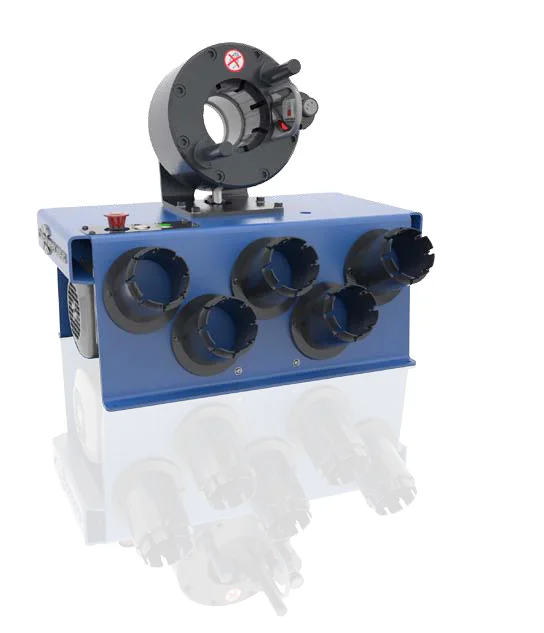

S Crimp 137 Crimping Machine
S Crimp 137 crimping machine
Features
- Ergonomic micrometer
- Compact head
- Die storage included
- Multiple Voltage Options
- Accurate
- Easy to move
- Cylinder protection
- Easy die set up
Technical Specifications
Capacity: 1'' 1/4 4SP
Crimp range: 4 - 70 mm
Crimp force: 137t
Opening with dies: +28 mm
Complete opening: 100 mm
Master-die length: 75 mm
Motor: 2,2kW
Dimensions: 600 x 400 x 490 mm (85Kg)
Packing details: 800x600x830 mm (130Kg)
Voltages available: 400V 3PH - 230V 3PH/1PH - 110V 1PH
Standard equipment
- Ergonomic micrometer
- Front die storage
Optional Equipment
- EG
- DSP
- DST
- Electrical footswitch
- Die sets for brake & air conditioning hoses
- Marking dies
| N° | Crimp range | Die length |
|---|---|---|
| 4 | 04-06 | 56 mm |
| 6 | 06-08 | 56 mm |
| 8 | 08-10 | 56 mm |
| 10 | 10-12 | 56 mm |
| 12 | 12-15 | 56 mm |
| 15* | 15-18 | 56 mm |
| 18* | 18-21 | 56 mm |
| 21* | 21-24 | 56 mm |
| 24* | 24-27 | 56 mm |
| 27* | 27-30 | 56 mm |
| 30 | 30-33 | 56 mm |
| 33* | 33-36 | 70 mm |
| 36 | 36-39 | 70 mm |
| 39* | 39-42 | 70 mm |
| 42 | 42-45 | 70 mm |
| 45* | 45-48 | 70 mm |
| 48* | 48-51 | 70 mm |
| 51 | 51-54 | 75 mm |
| 54 | 54-57 | 75 mm |
| 57 | 57-60 | 75 mm |
| 60 | 60-66 | 75 mm |
| 66 | 66-70 | 75 mm |
* Die sets included in the standard package.
