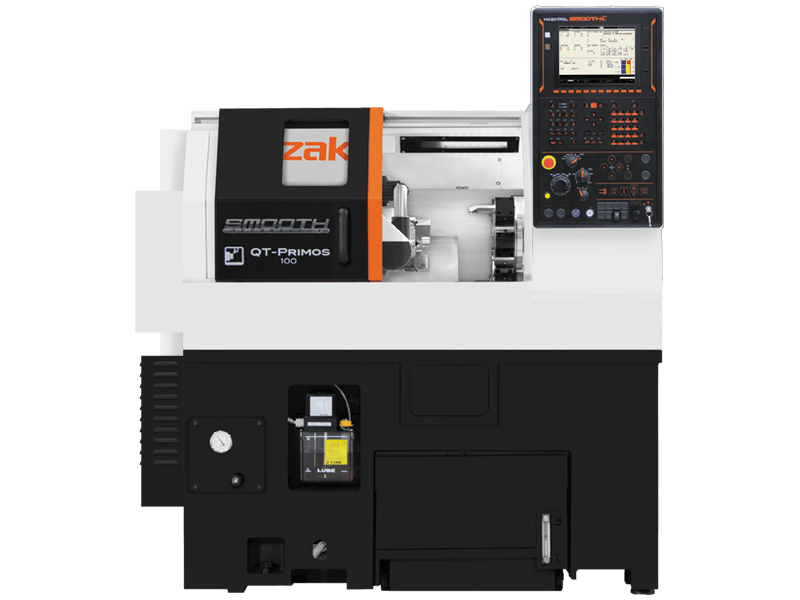

MAzak QTP100S: 2-axis 6" chuck cnc lathe
Features
- A compact, high-performance turning center with unsurpassed productivity
- Floor space requirement is 20% smaller than comparable machines
- Integral spindle / motor for high speed, high accuracy machining
- The MAZAK FZ CNC is based on the FANUC 0i series that is equipped with a variety of unique Mazak functions for increased ease of operation
Specifications
QTP 100S (200U)
QTP 150S (250U)
Max Swing
Max machining diameter
Max machining length
Bar work capacity
Axis travel (X/Z)
Chuck Size
Main Spindle speed
Main Spindle motor (30min/cont. rating)
Rapid Traverse Rate (X/Z)
Weight
Floor Space Requirement
Ø444mm
Ø180mm
200mm
Ø36mm
110mm/240mm
6"
5,000min-1
9kW/5.5kW
30 / 30 m/min
2000Kgs
1395mm x 1230mm
Ø580mm
Ø250mm
264mm
Ø51mm
140mm/305mm
8"
4,000min-1
11kW/11kW
30 / 30 m/min
2600Kgs
1600mm x 1500mm
For more information, visit the Mazak website.
