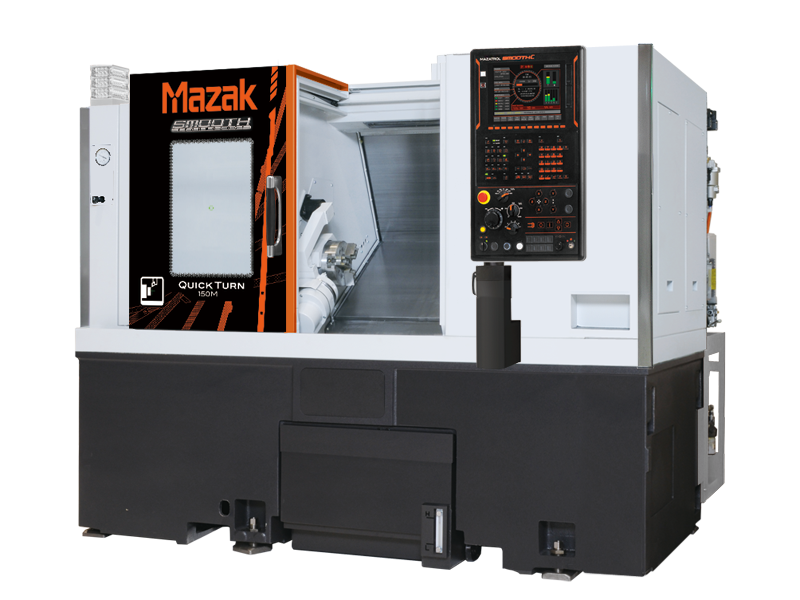

MAzak QT150M: 2-axis 8" chuck cnc lathe with milling function

MAzak QT150M: 2-axis 8" chuck cnc lathe with milling function

Features

  • Equipped with Mazatrol Smooth C, Fastest CNC in the world - Latest hardware and software for unprecedented speed and precision
  • Integral spindle / motor for high speed, high accuracy machining
  • 8 position / 12 position non-lift high speed indexing turret
  • High rigid linear roller guides for high speed, high rigidity and  a long service life

Specifications



QT 100 (300U)

QT 150 (500U)

Max Swing

Max machining diameter

Max machining length

Bar work capacity

Axis travel (X/Z)

Chuck Size

Main Spindle speed

Main Spindle motor (30min/cont. rating)

Rapid Traverse Rate (X/Z)

Weight

Ø580mm

Ø280mm

310mm

Ø52mm

200mm/340mm

6"

6,000min-1

15kW/11kW

33 / 36 m/min

3500Kgs

Ø580mm

Ø330mm

520mm

Ø65mm

200mm/560mm

8"

5,000min-1

15kW/11kW

30 / 36 m/min

3800Kgs
