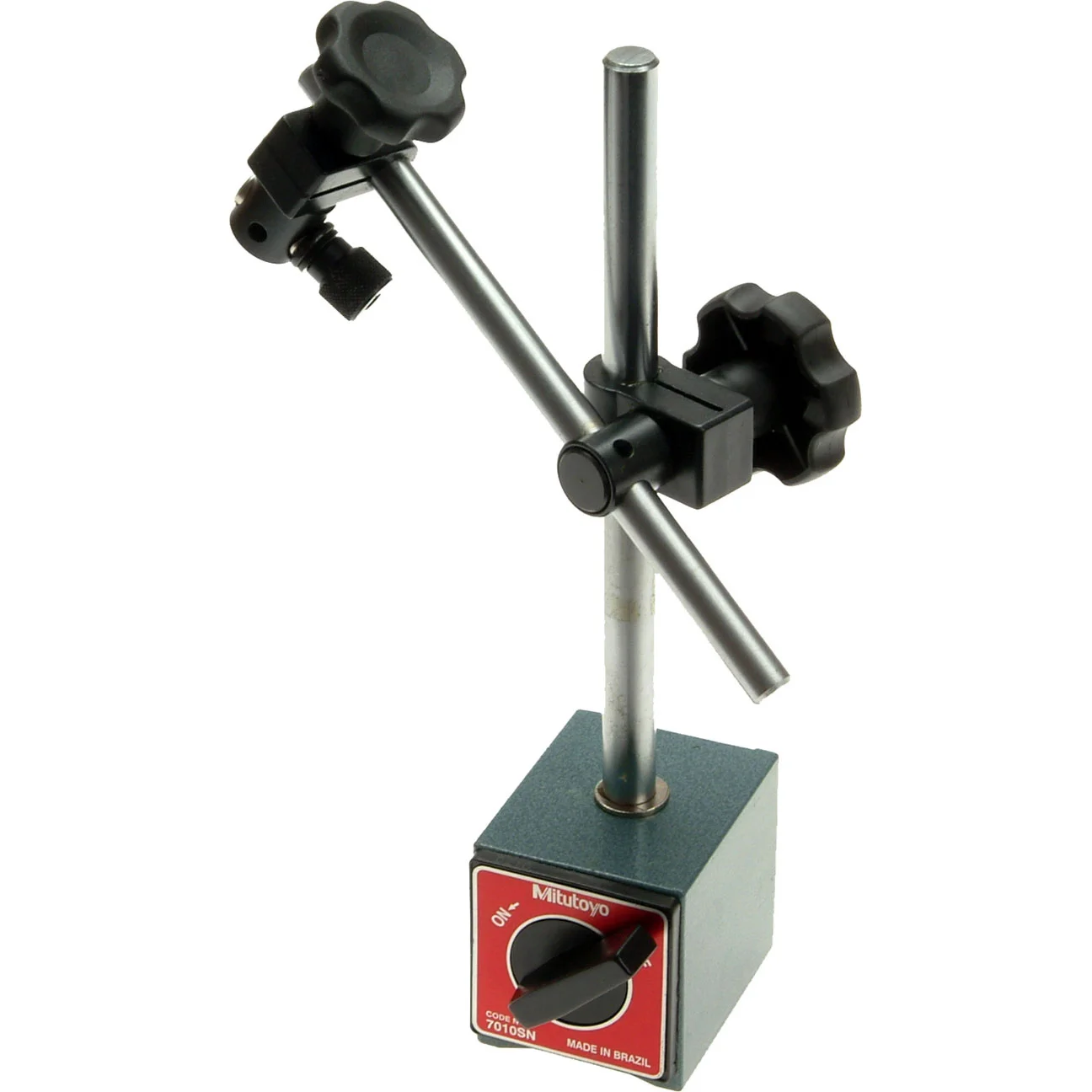

Series 7 Magnetic Stands

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators. The ON-OFF switch offers instant mounting and dismounting without any adverse effect on the indicators or work piece surface.



Specifications

Order No. Description Applicable holding stem dia. Dovetail groove Remarks
70105-10 Magnetic stand ǿ6mm, ǿ8mm - -
70115-10 Magnetic stand ǿ6mm, ǿ8mm - With fine adjustment
7014 Mini magnetic stand ǿ6mm, ǿ8mm Provided With magnet ON/OFF
7014E Mini magnetic stand ǿ4mm, ǿ9.5mm Provided With magnet ON/OFF
7019B Universal magnetic stand ǿ8mm, ǿ9.53mm (3/8”) Provided With hydraulic position lock
7027-10 Universal magnetic stand ǿ8mm Provided With hydraulic position lock
7028-10 Universal magnetic stand ǿ8mm Provided With hydraulic position lock
7029 Universal magnetic stand ǿ8mm Provided With magnet ON/OFF
