Benefits

  • High crimping force for a manual crimper
  • Narrow head
  • Audio-visual signal
  • 350 bar technology more robust & reliable than 700 bar
  • Large opening

Technical Specifications

Capacity:                1"1/4 4SP
Crimp range:          4 - 70 mm
Crimp force:           137t
Master-die length: 75 mm
Dimensions:           480 x 250 x 340 mm (55Kg)
Packing details:      800 x 600 x 830 mm (75Kg)

Accessories and option

  • EG
  • DSP
  • Hydro-pneumatic pump
  • Die sets for brake & Air conditionning hoses
  • Marking dies

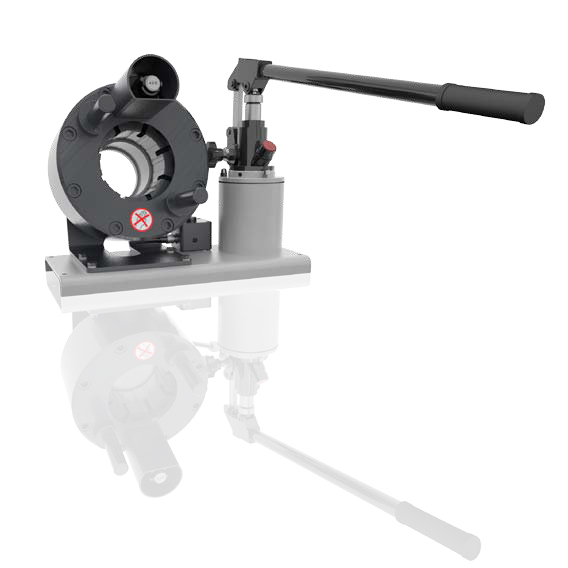

h crimp 137 manual crimping machine

h crimp 137 manual crimping machine

N° Crimp range Die length
4 04-06 56 mm
6 06-08 56 mm
8 08-10 56 mm
10 10-12 56 mm
12 12-15 56 mm
15* 15-18 56 mm
18* 18-21 56 mm
21* 21-24 56 mm
24* 24-27 56 mm
27* 27-30 56 mm
30 30-33 56 mm
33* 33-36 70 mm
36 36-39 70 mm
39* 39-42 70 mm
42 42-45 70 mm
45* 45-48 70 mm
48* 48-51 70 mm
51 51-54 75 mm
54 54-57 75 mm
57 57-60 75 mm
60 60-66 75 mm
66 66-70 75 mm

* Die sets included in the standard package.
